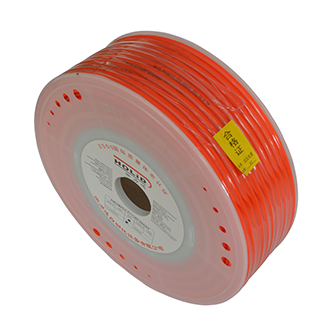

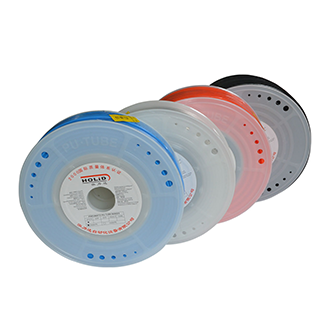

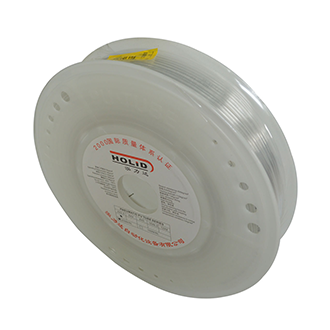

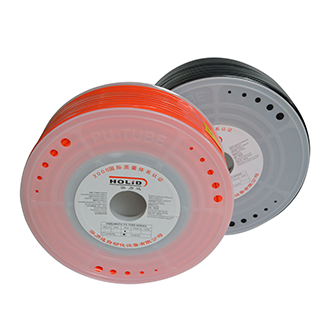

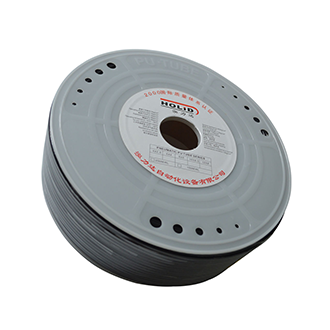

Polyurethane tube

Holid polyurethane tubes has the characteristics of high transparency, smallbending radius , high resilience, and small tolerance range. My company has the most advanced and stable production equipment, strictly control the sizeof the products


inquiry
DESCRIPTION

The excellent characteristics of polyurethane tubes:

1.Transparent polyurethane tubes has good transparency, can see the flowing medium’s state clearly.

2.Using the raw materials which are high-performance polyurethane for production; Making the polyurethane tubing with small bending radius, easier to install and not easy to have creases.

3.Polyurethan tubes of our company keep yellow level is high, not easy to turn yellow ,can be stored for a long time.

4.The colored polyurethane tubing adopts imported toner which with high temperature resistant, the produced tube’s color conform to the standard, bright, not easy to fade.

5.Using advanced system to control the polyurethane hose diameter, keeping its tolerance within + / - 0.1 m


Matters needing attention:

1.Please be careful for using in the workplace where the medium temperature is too high (> 55 ℃) or fluid with corrosive components (such as alkali, acid, corrosion resistance strong solvent, etc.), because there will be the risk of hose rupture.

2.Polyurethane tubes please be careful for working in the workplace where environment temperature is too high (>55 ℃) or full with chemical gas, because it may lead to a hose soften and the pressure of resistance drop dramatically.

3.Please do not store the polyurethane hose in warehouse with damp environment or storage period is too long, maybe appear rupture phenomenon that reason for the wet hydrolysis.


Data Sheet

Model

Tube Outside    diameter(mm)

Tube
inside diameter(mm)

Length
(m)

The use of    pressure(kgf/c㎡)

Blasting pressure(kgf/c㎡)

PU-0425-200

4

2.5

200

8

38

PU-0604-200

6

4

200

8

31

PU-0805-100

8

5

100

10

32

PU-1065-100

10

6.5

100

10

31

PU-1208-100

12

8

100

10

27

PU-1410-100

14

10

100

8.5

20

PU-1612-100

16

12

100

8.5

17
