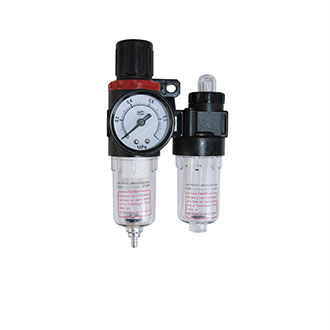

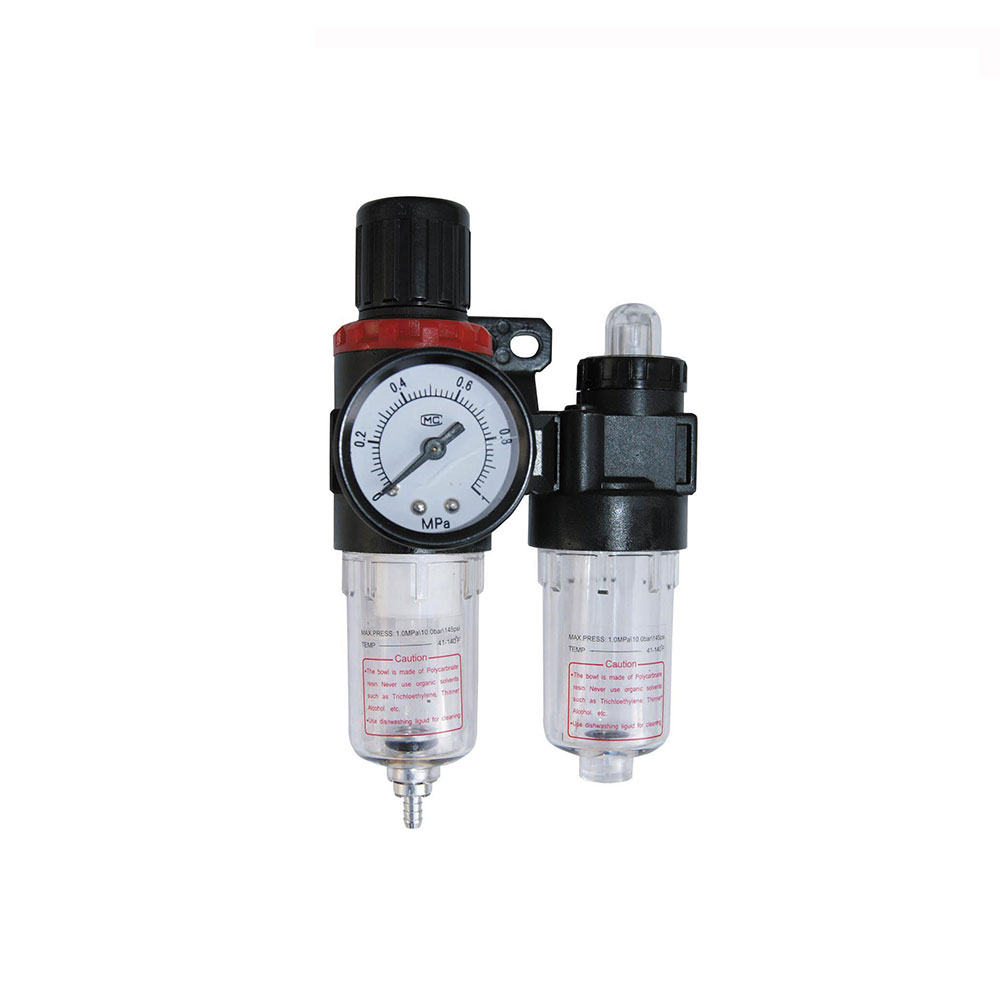

A series frl combinations is designed by our company,this frl combinations includes pneumatic filter regulator,oil lubricator. The pneumatic filter regulator can efficiently separate oil, water, and other impurities. It can automatically drain with the built-in pressure drainage device.
This frl combinations set ,pressure regulator filter, decompression, oil mist in a body, has the advantages of the compact structure, large flow, the stability of the output pressure, the installation easily.the frl combinations provided with a cup cover, safe and reliable, with a pressure gauge,a mounting bracket. Oil lubricator has the function that can oil persistent.
characteristic:
1.the pressure regulator filter ensure that resistance to pressure 1.5 MPa
2.The pressure regulator filter highest working pressure 1.0 MPa
3.The frl combinations ambient temperature 5~60 ℃
4.All with protection cover
|
Model
|
AFC1500
|
AFC2000
|
BFC2000 |
BFC3000
|
BFC4000
|
||
|
Working medium
|
Air |
||||||
|
Adapter diameter
|
PT1/8
|
PT1/4
|
PT1/4
|
PT3/8
|
PT1/2
|
||
|
Filter accuracy
|
40μ
|
||||||
|
Adjusted pressure range
|
0.5~0.8kgf/cm2
|
||||||
|
The maximum adjustable pressure
|
9.5kgf/cm2
|
||||||
|
Guarantee pressure resistance
|
15.0kgf/cm2
|
||||||
|
Using the temperature range
|
5~60℃
|
||||||
|
Filter water capacity
|
15CC
|
60CC
|
|||||
|
Feed oil cup volume
|
25CC
|
90CC
|
|||||
|
Recommended lubricating oil |
ISO VG32 or same level oil
|
||||||
|
Weight
|
0.5kg
|
0.7kg
|
|||||
|
Components
|
Filter regulator
|
AFR1500
|
AFR2000
|
BFR2000
|
BFR3000
|
BFR4000
|
|
|
Oil feeder
|
AL1500
|
AL2000
|
BL2000
|
BL3000
|
BL4000
|
||
